Broken Bridge Medium Narrow Sliding Windows

Haoya Aluminum's Yue Hao 123 Series Broken Bridge Medium Narrow Sliding Windows are designed to withstand typhoon-level winds and intense storms, providing steadfast protection against the forces of nature. Engineered with precision, these windows offer a robust and durable solution for long-term or intermittent operations.

Key features include anti-detachment technology, ensuring secure positioning of window sashes within the upper and lower tracks, preventing detachment. The anti-collision blocks cushion the impact forces during opening and closing motions, enhancing the longevity of both the sash and frame. The high-precision window structure exhibits exceptional strength and resistance to wind pressure.

Crafted from aerospace-grade 6063 silicon-titanium-magnesium aluminum alloy, these windows boast a standard profile thickness of 2.0mm and a width of 123mm. This construction provides superior resistance to wind pressure, torsion, and distortion. When faced with external stresses like building wind pressure, the design effectively maintains the stability of the window structure, preventing deformation.

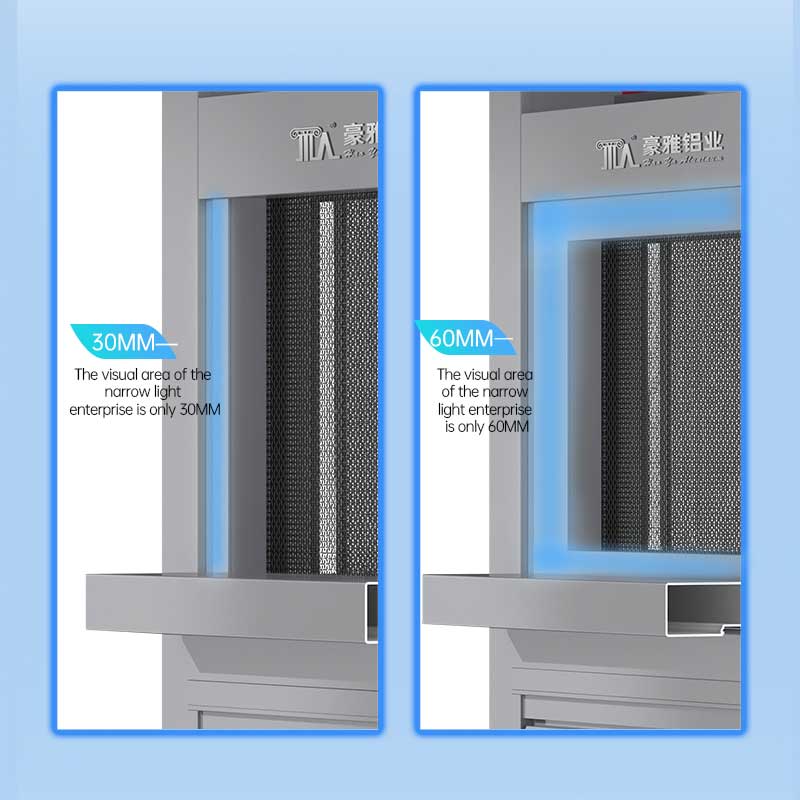

Available in two specifications, with options for 30 or 60 sashes, these windows embrace simplicity in design, where the sashes are concealed within the frame. The visible surface dimension of the window frame is 30mm, complemented by a hidden lock design and narrow borders, achieving an open area of up to 75% for enhanced ventilation and lighting, providing an expansive and unobstructed view.

The embedded frame design accommodates 5+13A+5 insulating glass as standard, ensuring effective noise isolation. The glass is further upgraded to a 5+15A+5 configuration with a black hollow strip and logo, creating an efficient sound barrier. The 3C-certified tempered glass with double-layer anti-collision protection adds an extra layer of safety and clarity, promoting a tranquil environment.

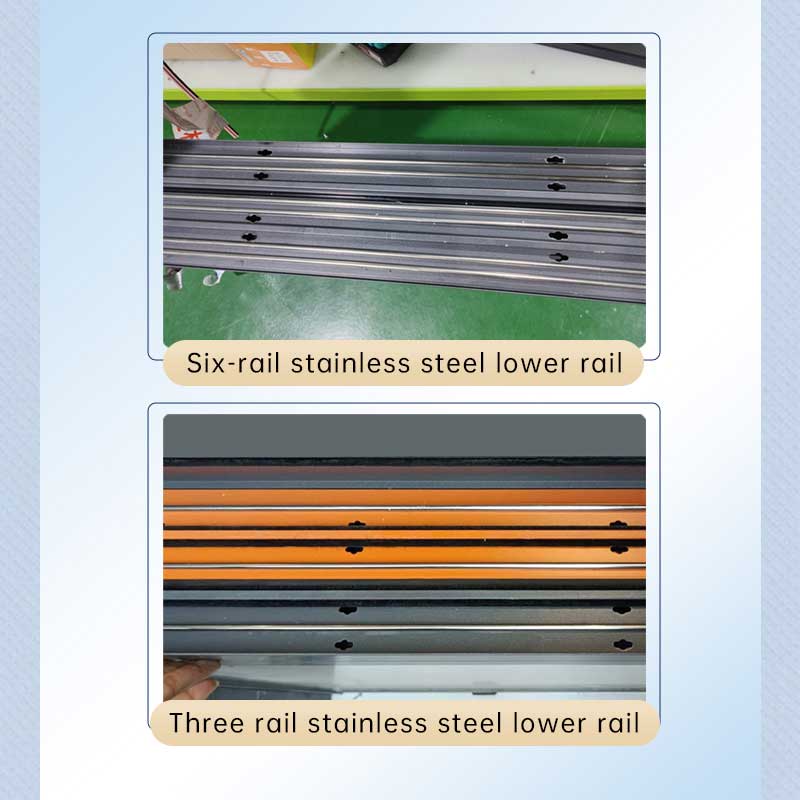

The windows feature a dual-row pulley design, ensuring smoother sliding and improved load-bearing capacity. The stainless steel-inlaid tracks, with a thickness of 3.0 for the lower track, facilitate seamless and quiet sliding. The addition of a water-blocking edge enhances water resistance and prevents backflow.

The anti-detachment blocks secure the upper and lower parts of the sash, preventing detachment. The drainage system, with visible, concealed, and floor drain outlets, ensures effective water drainage, even during heavy rain. The multi-layered sealing wool reduces air convection in the tracks, enhancing overall sealing performance against dust, sand, and mosquitoes.

The fixed position incorporates internal and external pressure-sealing, utilizing high-grade EPDM rubber strips. The three-component co-extruded bending foam rubber strip enhances aging resistance and maintains shape over time. The high-quality triple EPDM seal provides excellent weather resistance, elasticity, and resistance to compression deformation.

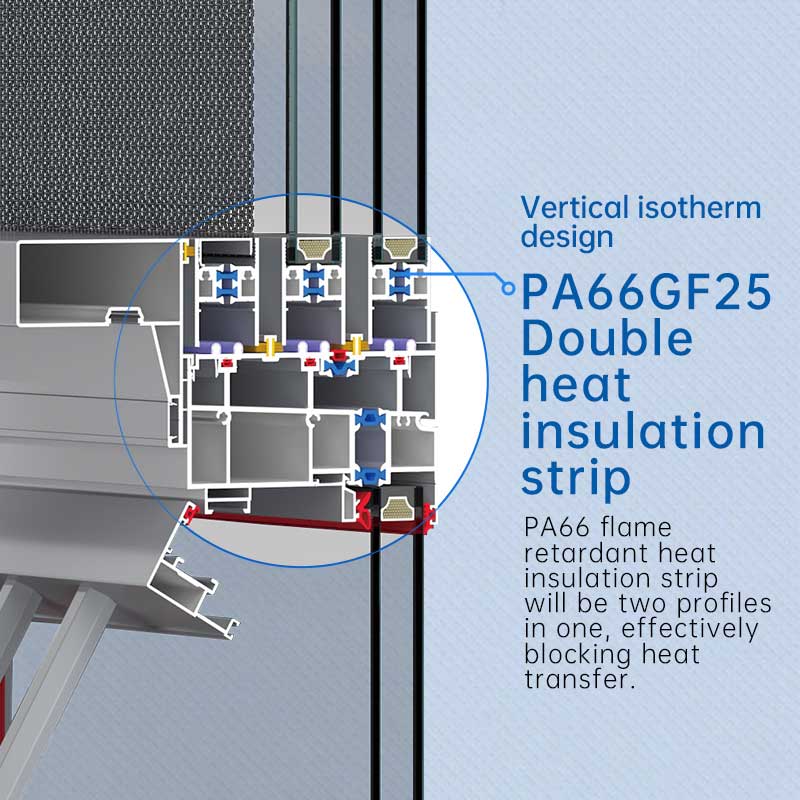

The isothermal surface design features a standard nylon heat-insulating strip, reinforcing sound insulation and thermal insulation. The 2-in-1 window sash design prevents detachment and collision, ensuring the long-term durability of the sash and frame. The safety features include anti-fall and anti-detachment mechanisms, ensuring the security of the window structure.

The protective rail has an opening function, serving as a secure barrier for children when closed and providing convenient opening and closing when needed. The standard high-transparency screen offers corrosion resistance, aging resistance, and excellent light transmission. The diamond mesh can be installed indoors or outdoors.

The secure line pressure structure can withstand strong wind pressure, with a tensile and yield strength five times that of ordinary 50 windows. With over 18 years of industry expertise, Haoya Aluminum is committed to building high-quality doors and windows, backed by more than 160 patented technologies, including inventions, appearances, and utility models.

With a dedicated team of over 30 researchers, Haoya Aluminum continuously innovates its products, earning recognition through numerous awards and the backing of China Ping An Insurance. The company's robust production capabilities bring together a comprehensive system for door and window manufacturing.

Haoya Aluminum is devoted to providing consumers with exquisite living solutions, contributing to spacious and scenic residences and refined lifestyles.

Haoya Aluminum Broken Bridge Medium Narrow Sliding Windows Features:

Minimalist design: 30 full hidden fan design visual hidden or 60 fan design high-end atmosphere

Structural robustness: anti-detracking and typhoon-resistant design

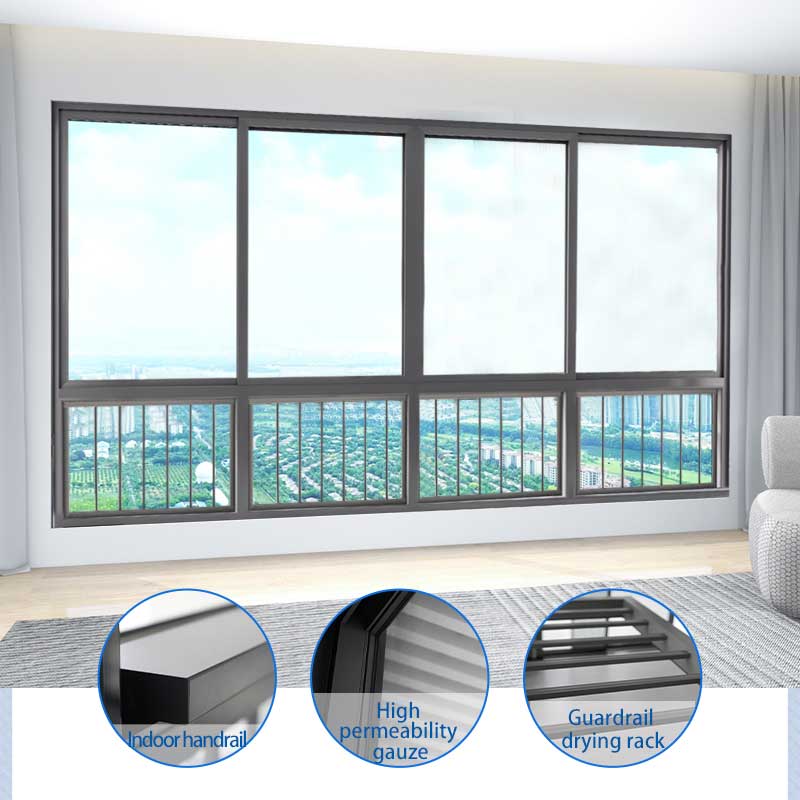

Premium configuration: optional flip-up guardrail and handrail

Haoya Aluminum Broken Bridge Medium Narrow Sliding Windows Attributes:

Opening and closing method: push-pull

Profile: 6063-T5 aluminium alloy

Wall thickness: 2.0mm, lower rail thickness 3.0mm

Rail: Three rails

Standard glass: glass fan 5+13A+5; solid glass 5+15A+5

Standard hardware: TAG Heuer Custom

Standard mesh: stainless steel SUS high-density anti-prying high-transparency 0.5 gold steel mesh
