Broken Bridge Internal Sliding Casement Windows

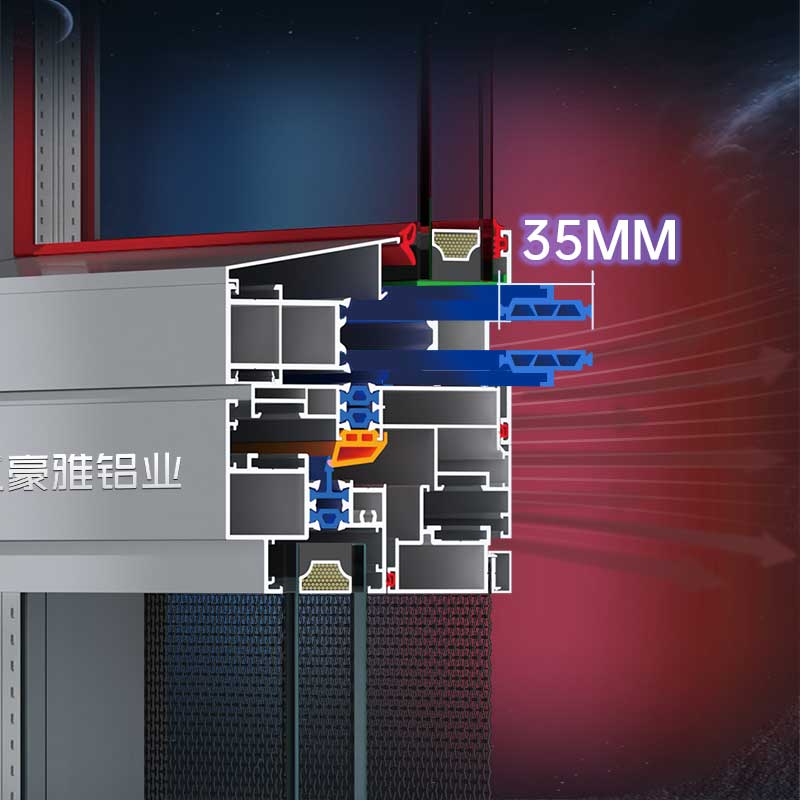

Haoya Aluminum once again leads the window industry by launching the Fengshen 108 Series high quality Broken Bridge Internal Sliding Casement Windows, demonstrating excellent quality with outstanding design and ensuring that the windows have excellent performance against typhoons and waterproofing. It is made of aviation-grade 6063-T5 silicon-titanium-magnesium aluminum alloy, which complies with the new national standard profile structure. The profile wall thickness is 1.8mm. It is processed by advanced electrostatic powder or fluorocarbon spraying process, showing excellent weather resistance such as fading resistance, corrosion resistance and frost resistance. performance. The five-cavity structure is matched with multi-cavity insulation strips to achieve a double-layer multi-cavity insulation design, achieving the effects of strong thermal insulation, bridge-breaking insulation, energy saving and environmental protection, and at the same time, it has stronger wind pressure resistance and excellent thermal insulation and sound insulation. performance.

The window design is unique. The indoor and outdoor frames are flush with each other, and the frame and the sash are on the same level. There are no protruding parts of material, making the entire window smoother and more beautiful. EPDM high-speed rail-grade soft and hard co-extruded integrated bending foam strips are used to ensure weather resistance and oxidation resistance. The double EPDM sealing strips have weather resistance, good elasticity and resistance to compression deformation. Standard double-layer insulated tempered glass, high sound insulation standard 5+20A+5, or choose double-cavity triple glass 5+6A+5+6A+5 to achieve multiple sound insulation, sound insulation performance of more than 40dB, providing a quiet living environment indoors .

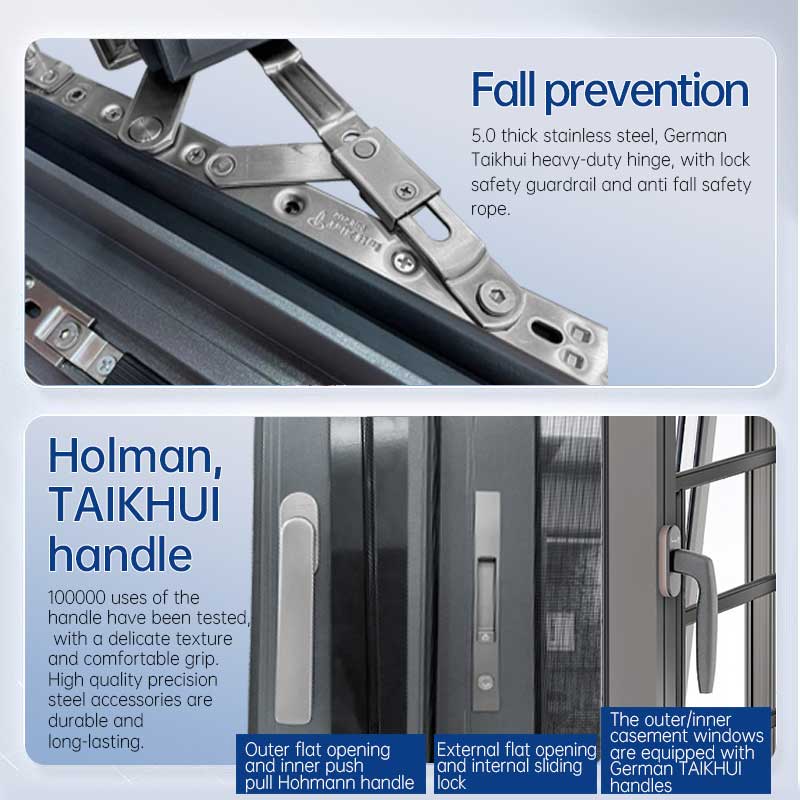

The hidden drainage design has withstood the test of violent storms. The drainage holes are highly hidden. The design of the drainage outlet can be adjusted to increase the drainage volume and drainage speed. It not only ensures the overall aesthetics, but also effectively prevents rainwater from intruding into the room without making noise. 304 King Kong mesh or high permeability mesh provides comprehensive anti-theft and anti-mosquito protection. Product details reflect excellent quality, including anti-fall safety hinges, antibacterial handles, and sharp-edge design, providing comprehensive safety protection for your family.

Fengshen 108 series Broken Bridge Internal Sliding Casement Windows have a variety of opening methods, such as outer flat opening, inner flat opening, double inner opening, inner opening and inverted, outer opening and bottom hanging, as well as outer flat doors, outer flat opening and inner sliding windows. . Haoya Aluminum has always adhered to a professional attitude and craftsmanship towards its products. This spirit runs through every detail, constantly exploring the road of product innovation, and is committed to bringing 360° care to users, letting a window express happiness. Definition.

Haoya Aluminum Broken bridge internal Sliding casement Windows Features:

Minimalist design: flush frame and fan design, simple and generous appearance

Rugged construction: multi-channel sealing design for thermal insulation performance

Advanced configuration: optional double-chambered triple-glazed 5+6A+5+6A+5, magnetically controlled louvres

Haoya Aluminum Broken bridge internal Sliding casement Windows Attributes:

Opening and closing mode: outer flat open inner push-pull

Profile: 6063-T5 aluminium alloy

Wall thickness: 1.8mm

Single fan size 470-800(W)*685-1700(H)mm

Maximum view area of 10m² from a single door

Standard glass: 5+20A+5

Standard hardware: Germany TAIKHUI hardware system

Standard mesh: stainless steel SUS304 multi-mesh anti-prying safety gold steel mesh 0.5mm
