Double Broken Bridge Casement Window with Gauze Mesh

Haoya Aluminum, a leading window and door supplier based in China, introduces the Double Broken Bridge Casement Window with Gauze Mesh. This innovative window design combines the strength of a double broken bridge structure with the practicality of a gauze mesh, providing a seamless blend of durability and functionality. Crafted with precision using aviation-grade 6063-T5 silicon titanium magnesium aluminum alloy, the window features a new national standard profile structure with a 1.8mm thickness, ensuring exceptional resistance to fading, corrosion, and frost.

Model:Fengshen 108

Send Inquiry

Product Description

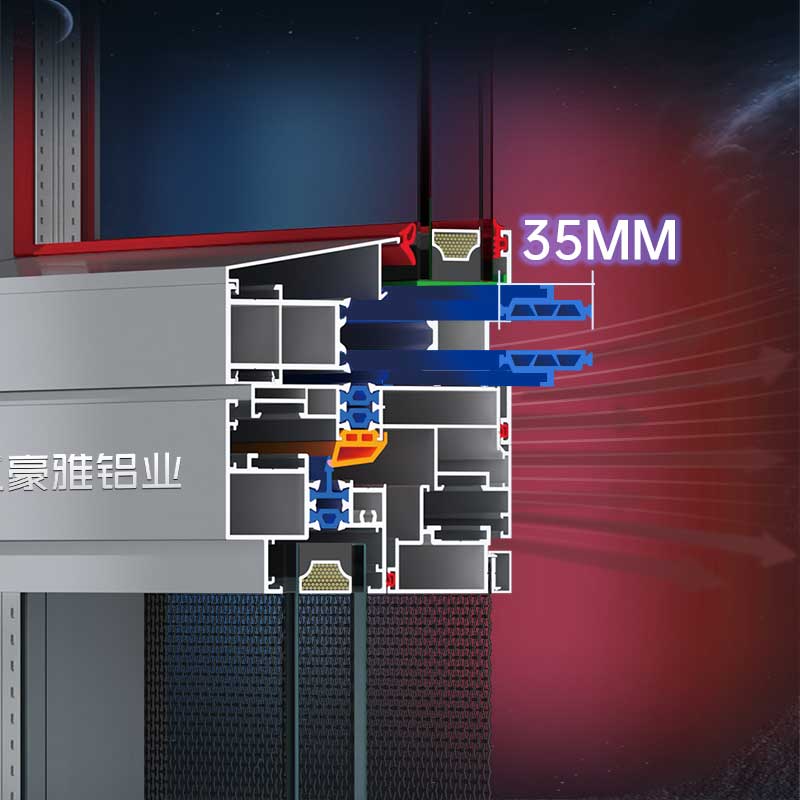

Chins Haoya Aluminum launches Fengshen 108 series Double Broken Bridge Casement Window with Gauze Mesh, which highlights its excellent quality with its excellent typhoon-resistant and watertight design. Made of aviation-grade 6063-T5 silicon-titanium-magnesium aluminum alloy, it complies with the new national standard profile structure. The profile wall thickness is 1.8mm. Through advanced electrostatic powder or fluorocarbon spraying process, it shows excellent weather resistance such as fading resistance, corrosion resistance and frost resistance. performance. The five-cavity structure is matched with multi-cavity insulation strips to achieve double-layer multi-cavity insulation, achieving the effects of strong thermal insulation, bridge-breaking insulation, energy saving and environmental protection, and at the same time, it has stronger wind pressure resistance and excellent thermal insulation and sound insulation performance. .

The indoor and outdoor frames and sash are flush, the frame and the sash are on the same level, and there is no protruding part of the window material, making the entire window smoother and more beautiful. EPDM high-speed rail-grade soft and hard co-extruded integrated bending foam strips are used to ensure weather resistance and oxidation resistance. The double EPDM sealing strips have weather resistance, good elasticity and resistance to compression deformation. Standard double-layer insulated tempered glass, high sound insulation standard 5+20A+5, or optional double-cavity triple glass 5+6A+5+6A+5 to achieve multiple sound insulation, sound insulation performance of more than 40dB, providing a quiet environment indoors .

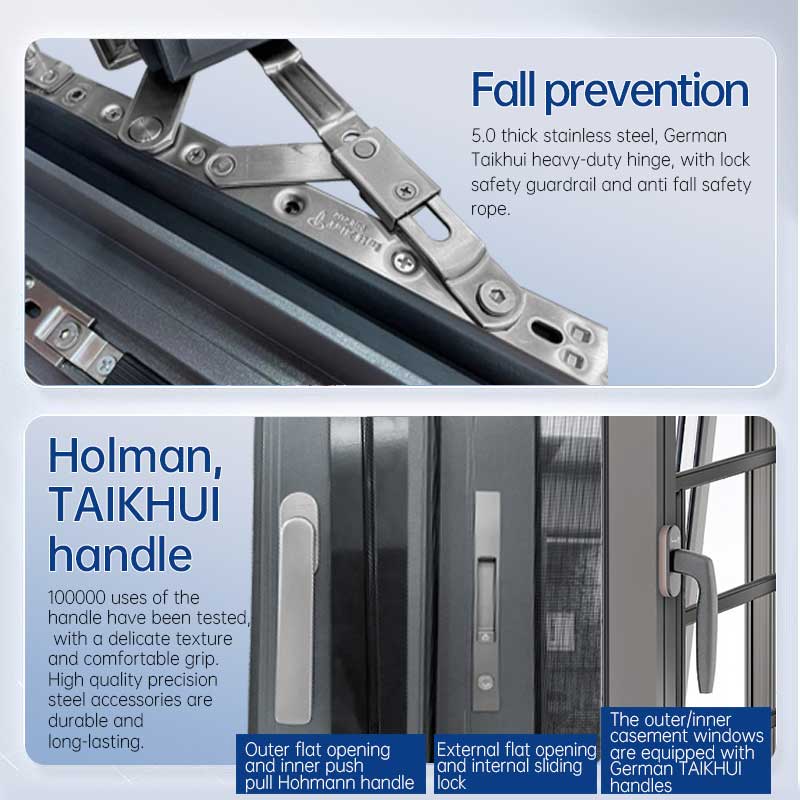

The hidden drainage design has withstood the test of violent storms. The drainage holes are highly concealed. The drainage outlet design can be enlarged to increase the drainage volume and drainage speed. It not only ensures the overall aesthetics, but also effectively prevents rainwater from intruding into the room without making noise. 304 King Kong mesh or high permeability mesh provides anti-theft and anti-mosquito protection. Product details reflect excellent quality, including anti-fall safety hinges, antibacterial handles, and sharp-edge design, providing comprehensive safety protection for your family.

Fengshen 108 series Double Broken Bridge Casement Window with Gauze Mesh has a variety of opening methods, such as outer flat opening, inner flat opening, double inner opening, inner opening and inverted opening, outer opening and bottom hanging, as well as outer flat door, outer flat opening and inner opening. Sash windows. Haoya Aluminum's professional attitude and craftsmanship towards its products run through every detail, and it constantly explores the road to product innovation, striving to bring 360° care to users and letting a window express the definition of happiness.
